componenti-fusti

Drums components

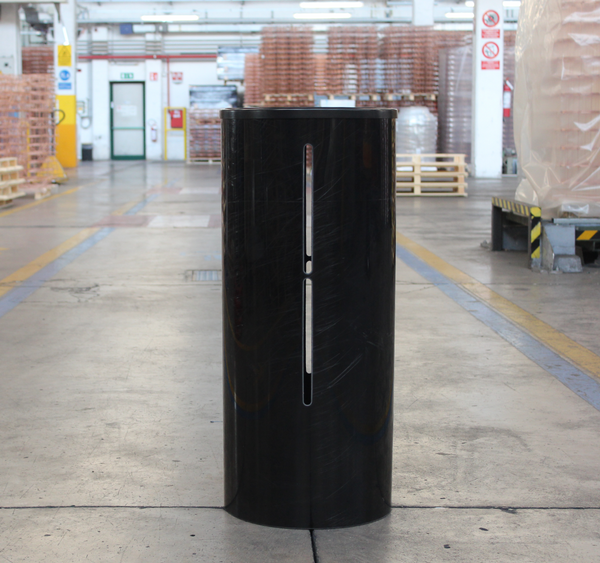

KONIK INNER CORE

INTERNAL TUBE WITH RING

INTERNAL TUBE WITH RING

Material: Recycled PP.
Compatible with Konik Drums.
Konik Drum F500/800: outer diameter 9.53 in – lenght 28.34 in
Konik Drum F670/880: outer diameter 11.81 in /13.78 in – lenght 31.50 in
Modular tube design consists of two parts:
a foldable sheet that forms the tube and an attachable cap (or lid).
Reusable product.

The inner core inside the drum for welding wire is used to guide and stabilize the unwinding of the wire during automatic feeding. It keeps the coil centered, prevents the turns from collapsing inward, and reduces the risk of birdnest. In addition, it creates a controlled geometry that allows the wire to be smoothly pulled from the inside of the drum.

Our Konik drum has been specifically designed to be fully reusable, including the inner core itself. For this reason, the tube is removable rather than fixed, unlike standard drums. It can be used across multiple drums, as it is only required during the winding and/or unwinding pha- ses, and can then be removed for transport and storage.
The main advantage of the sheet-format product is that, once disassembled, it becomes a flat sheet. This allows significant space savings and makes transport, storage, and handling much easier and more efficient.

Data sheet

inner-core-per-konik-internal-tube-with-ring-drawing

Package

Full Mega Truck

for quotation
please contact
sales@spazzolplastica.com

Full Standard Truck

for quotation
please contact
sales@spazzolplastica.com

Full Container 20' Box
230.71x90.94x92.21in
for quotation
please contact
sales@spazzolplastica.com

Full Container 40' Box
472.44x90.55x92.91in
for quotation
please contact
sales@spazzolplastica.com

Full Container 40' HC
472.44x92.12x105.51in
for quotation
please contact
sales@spazzolplastica.com

spazzolplastica-package-image-konik-inner-core

Packaging notes

In order to guarantee the stability of the products during the transport, for long distances, we recommend to load a full truck/container.
In case of partial loads, secure the pallets carefully.
Upon request, there is the possibility to plan a full load of mixed products.
Upon request, there is the possibility to customize the pallet.
We suggest to manage our pallets in warehouse according to the FIFO method.

Download product sheet
