recycled plastic drum accessories for welding wire

Pressure rings & mexican hats

TR496.334

PRESSURE RING

tension ring drums diameter 496 drums tab welding wire

Material (Recycled or First choice): PP.
For details see material data sheet
Tension ring suitable for Konik drums
External dimeter 496 mm

All the stated dimensions, loads and weights are approximative values. Usual tolerances for the sector and customers remain reserved
Possibility to customize the plastic spool
For the quality and features of the materials, see the specific data sheet
Store in dry environments with temperatures from +5° to +45°
Before the use, let the goods acclimate at a temperature of 15°
Handle avoiding collisions and/or falls
Pallets must not be stored in direct sunlight, because the heat increase may cause permanent warp of the plastic
Spools manufactured with plastic blend of PC/ABS are not suitable for winding Stainless Steel wires
To avoid the risk of Environmental Stress Cracking, it is strongly recommended to test the compatibility of the chemicals used in the production process with the material of the spool

Data sheet

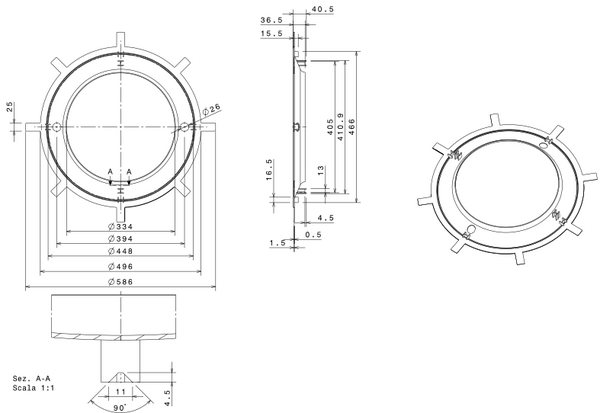

tr496-334-pressure-ring-drawing

Package

BOX WITH AND WITHOUT SPONGE 62X62X68 (40 PZ)

Full Mega Truck
1360x248x300cm
pz/pallet =on request
n. pallet =on request
Tot pcs =480
Pallet AxBxC= 133X124X214H
Full Standard Truck
1360x248x270cm

for quotation
please contact
sales@spazzolplastica.it
Full Container 20' Box
586x231x236cm

for quotation
please contact
sales@spazzolplastica.it
Full Container 40' Box
1200x230x236cm

for quotation
please contact
sales@spazzolplastica.it
Full Container 40' HC
1200x234x268cm

for quotation
please contact
sales@spazzolplastica.it
spazzolplastica-package-image-tr496-334

Packaging notes

In order to guarantee the stability of the products during the transport, for long distances, we recommend to load a full truck/container
In case of partial loads, secure the pallets carefully
Upon request, there is the possibility to plan a full load of mixed products
Upon request, there is the possibility to customize the pallet
We suggest to manage our pallets in warehouse according to the FIFO method

Download product sheet
