recycled plastic drum accessories for welding wire

Pressure rings & mexican hats

TR485.334

PRESSURE RING

tension ring drums diameter 485

Material (Recycled or First choice): PP
For details see material data sheet
Suitable for drums
Tension ring drums external diameter 485 mm
Upon request, pressure ring: with/without holes - with/without sponge

All the stated dimensions, loads and weights are approximative values.
Usual tolerances for the sector and customers remain reserved.
Possibility to customize the plastic spool.
For the quality and features of the materials, see the specific data sheet.
Transport and store in dry environments with temperatures from +5° to +45°.
Before the use, let the goods acclimate at a temperature of 15°.
Handle avoiding collisions and/or falls.
Pallets must not be stored in direct sunlight, because the heat increase may cause permanent warp of the plastic.
Spools manufactured with plastic blend of PC/ABS are not suitable for winding Stainless Steel wires.
To avoid the risk of Environmental Stress Cracking, it is strongly recommended to test the compatibility of the chemicals used in the production process with the material of the spool.

Data sheet

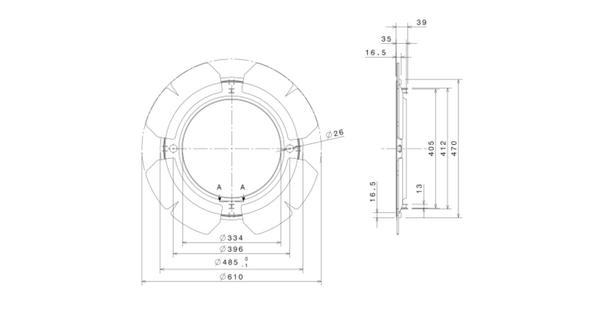

tr485-334-pressure-ring-drawing

Package

BOX WITH AND WITHOUT SPONGE 52X52X68 (40 PZ)


Full Mega Truck Full Standard Truck Full Container 20' Box Full Container 40' Box Full Container 40' HC
1360x248x300cm 1360x248x270cm 586x231x236cm 1200x230x236cm 1200x234x268cm
pz/pallet = 320 pz/pallet = 480 pz/pallet = 480 pz/pallet = 480 pz/pallet = 480
n. pallet = 24 n. pallet = 24 n. pallet = 10 n. pallet = 24 n. pallet = 24
Tot. pcs = 7680 Tot. pcs = 11520 Tot. pcs = 4800 Tot. pcs = 11520 Tot. pcs = 11520
Pallet AxBxC= Pallet AxBxC= Pallet AxBxC= Pallet AxBxC= Pallet AxBxC=
120x105x148H 120X105X216H

120X105X216H

120X105X216H

120X105X216H
spazzolplastica-package-image-tr485-334

Packaging notes

In order to guarantee the stability of the products during the transport, for long distances, we recommend to load a full truck/container.
In case of partial loads, secure the pallets carefully.
Upon request, there is the possibility to plan a full load of mixed products.
Upon request, there is the possibility to customize the pallet.
We suggest to manage our pallets in warehouse according to the FIFO method.
