Plastic Spools 3D Wire

Plastic spools

200.1.639_3D

PLASTIC SPOOL FOR 3D FILAMENT 1 kg

Plastic spools for 3D filament 1 kg

Material (Recycled or First choice): PC/ABS, ABS, PS
For details see material data sheet
Capacity 3D filament: 1 kg
Winding volume: 1.546 cm3
Plastic spool suitable both for high precision and random winding
The standard colour is black, available also in different colours

All the stated dimensions, loads and weights are approximative values.
Usual tolerances for the sector and customers remain reserved.
Possibility to customize the plastic spool.
For the quality and features of the materials, see the specific data sheet. Transport and store in dry environments with temperatures from +5° to +45°. Before the use, let the goods acclimate at a temperature of 15°.
Handle avoiding collisions and/or falls.
Pallets must not be stored in direct sunlight, because the heat increase may cause permanent warp of the plastic.
Spools manufactured with plastic blend of PC/ABS are not suitable for winding Stainless Steel wires.
To avoid the risk of Environmental Stress Cracking, it is strongly recommended to test the compatibility of the chemicals used in the production process with the material of the spool.

Data sheet

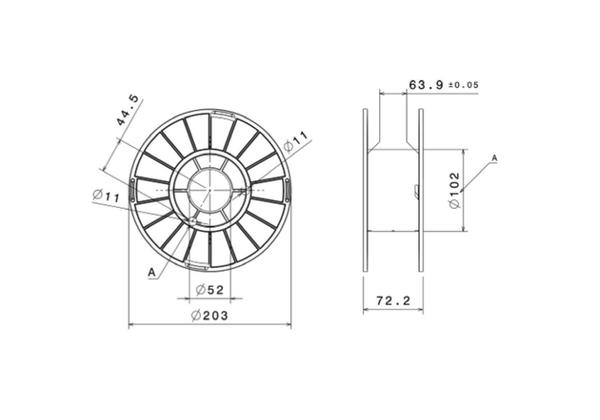

200-1-639_3d-plastic-spool-for-3d-filament-1-kg-drawing

Package

Carton box Pallet with carton box Pallet without carton box
pcs/box = 81 pcs/box = 81 pcs/box = 720
Box AxBxC= n. box = 8 Pallet AxBxC=
54x54x70H Tot pcs = 648 127X100X122H
  Pallet AxBxC=
  120x105x150H

TRANSPORT WITH CARTON BOX

Full Mega Truck Full Standard Truck Full Container 20' Box Full Container 40' Box Full Container 40' HC
1360x248x300cm 1360x248x270cm 586x231x236cm 1200x230x236cm 1200x234x268cm
pz/pallet = 816 pz/pallet = 720 pz/pallet = 624 pz/pallet = 624 pz/pallet = 720
n. pallet = 46 n. pallet = 46 n. pallet = 20 n. pallet = 42 n. pallet = 42
Tot. pcs = 37536 Tot. pcs = 33120 Tot. pcs = 12480 Tot. pcs = 26208 Tot. pcs = 30240
Pallet AxBxC= Pallet AxBxC= Pallet AxBxC= Pallet AxBxC= Pallet AxBxC=
127X100X138H 127X100X122H 127X100X110H 127X100X110H 127X100X122H
spazzolplastica-package-image-200-1-639_3d

Packaging notes

In order to guarantee the stability of the products during the transport, for long distances, we recommend to load a full truck/container.
In case of partial loads, secure the pallets carefully.
Upon request, there is the possibility to plan a full load of mixed products.
Upon request, there is the possibility to customize the pallet.
We suggest to manage our pallets in warehouse according to the FIFO method.

Download product sheet
