plastic-spools

Plastic spools

200.0.75.43_3D

PLASTIC SPOOL FOR 3D FILAMENT 0,75 kg

Empty plastic spool for 3D filament 0,75 kg

Material (Recycled or First choice): PC/ABS, ABS, PS
For details see material data sheet
Capacity 3D filament: 0,75 kg
Winding volume: 1.026 cm3

Plastic spool suitable both for high precision and random winding
The standard colour is black, available also in different colours

All the stated dimensions, loads and weights are approximative values.
Usual tolerances for the sector and customers remain reserved.
Possibility to customize the plastic spool.
For the quality and features of the materials, see the specific data sheet.
Transport and store in dry environments with temperatures from +5° to +45°. Before the use, let the goods acclimate at a temperature of 15°.
Handle avoiding collisions and/or falls.
Pallets must not be stored in direct sunlight, because the heat increase may cause permanent warp of the plastic.
Spools manufactured with plastic blend of PC/ABS are not suitable for winding Stainless Steel wires.
To avoid the risk of Environmental Stress Cracking, it is strongly recommended to test the compatibility of the chemicals used in the production process with the material of the spool.

Data sheet

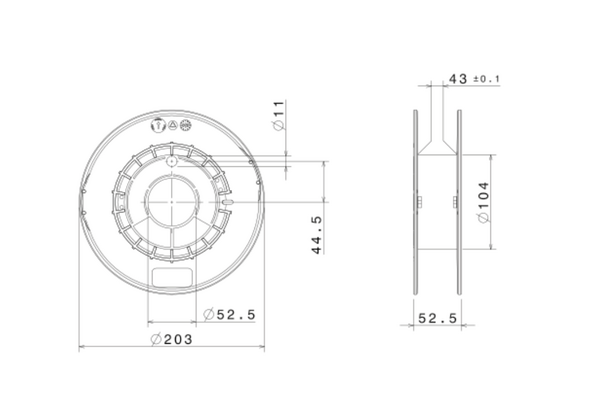

200-0-75-43_3d-plastic-spool-for-3d-filament-0-75-kg-drawing

Package

Full Mega Truck
1360x248x300cm
pz/pallet = 1152
n. pallet = 48
Tot. pcs = 55296
Pallet AxBxC = 98X128X138H
Full Standard Truck
1360x248x270cm
pz/pallet = 1056
n. pallet = 48
Tot. pcs = 50688
Pallet AxBxC = 98x128x128H
Full Container 20' Box
586x231x236cm
pz/pallet = 960
n. pallet = 10
Tot. pcs = 9600
Pallet AxBxC = 97x131x121H
Full Container 40' Box
1200x230x236cm
pz/pallet = 960
n. pallet = 21
Tot. pcs = 20160
Pallet AxBxC = 97x131x121H
Full Container 40' HC
1200x234x268cm
pz/pallet = 960
n. pallet = 42
Tot. pcs = 40320
Pallet AxBxC = 97x131x121H



Carton box
pcs/box=108
Box AxBxC = 54x54x70H
Pallet with carton box
pcs/box = 108
n. boxes = 8
Tot. pcs = 864
Pallet AxBxC = 120x105x150H
Pallet without carton box
pcs/pallet = 960
Pallet AxBxC = 97x131x121H
spazzolplastica-package-image-200-0-75-43_3d

Packaging notes

In order to guarantee the stability of the products during the transport, for long distances, we recommend to load a full truck/container.
In case of partial loads, secure the pallets carefully.
Upon request, there is the possibility to plan a full load of mixed products.
Upon request, there is the possibility to customize the pallet.
We suggest to manage our pallets in warehouse according to the FIFO method.

Download product sheet
