Plastic Spools 3D Wire

Plastic spools

200.1.557_3D_FUME

PLASTIC SPOOL FOR 3D FILAMENT 2,20 lb

PLASTIC SPOOL FOR 3D FILAMENT 2,20 lb

Material Recycled PC Smoky grey.
For details see material data sheet
Capacity 3D filament: 2.20 lbs
Winding volume: 82.22 in³
Plastic spool suitable both for high precision and random winding
The standard colour is black, available also in different colours

All the stated dimensions, loads and weights are approximative values. Usual tolerances for the sector and customers remain reserved
Possibility to customize the plastic spool
For the quality and features of the materials, see the specific data sheet
Transport and store in dry environments with temperatures from +41°F to +113°F
Before the use, let the goods acclimate at a temperature of 59°F
Handle avoiding collisions and/or falls
Pallets must not be stored in direct sunlight, because the heat increase may cause permanent warp of the plastic
Spools manufactured with plastic blend of PC/ABS are not suitable for winding Stainless Steel wires
To avoid the risk of Environmental Stress Cracking, it is strongly recommended to test the compatibility of the chemicals used in the production process with the material of the spool

Data sheet

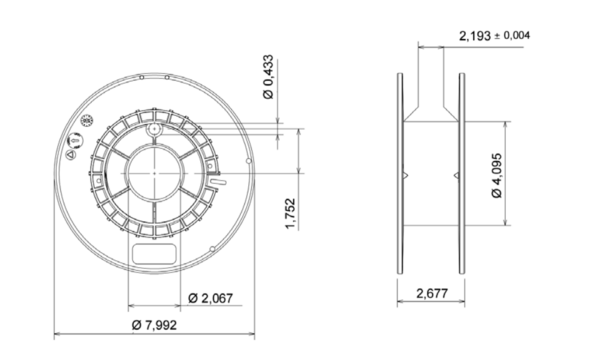

200-1-557_3d_fume-plastic-spool-for-3d-filament-2-20-lb-drawing

Package

Carton box Pallet with carton box Pallet without carton box
pcs/box = 90 pcs/box = 90 pcs/box = 720
Box AxBxC= n. box = 8 Pallet AxBxC=
21x21x28Hin Tot pcs = 720 50x39x43H in
  Pallet AxBxC=
  47x41x59H in

TRANSPORT WITH CARTON BOX

Full Mega Truck Full Standard Truck Full Container 20' Box Full Container 40' Box Full Container 40' HC
    230.71x90.94x92.21in 472.44x90.55x92.91in 472.44x92.12x105.51in
for quotation  for quotation  pz/pallet = 624 pz/pallet = 624 pz/pallet = 720
please contact please contact n. pallet = 20 n. pallet = 42 n. pallet = 42
sales@spazzolplastica.com sales@spazzolplastica.com Tot. pcs = 12480 Tot. pcs = 26208 Tot. pcs = 30240
    Pallet AxBxC= Pallet AxBxC= Pallet AxBxC=
    50x39x43H in 50x39x43H in 50x39x48H in
spazzolplastica-package-image-200-1-557_3d_fume

Packaging notes

In order to guarantee the stability of the products during the transport, for long distances, we recommend to load a full truck/container.
In case of partial loads, secure the pallets carefully.
Upon request, there is the possibility to plan a full load of mixed products.
Upon request, there is the possibility to customize the pallet.
We suggest to manage our pallets in warehouse according to the FIFO method.
