plastic spool for welding wire

Plastic spools

300.25.910

PLASTIC SPOOL D300 25 kg 91,0 mm

Plastic spools with capacity of 25 kg of welding wire

Material (Recycled or First choice): PC/ABS, ABS, PS, PP
For details see material data sheet
According to: ISO 544:2018 (DIN 8559/ISO864)
Capacity welding wire: 25 kg
Winding volume: 5.261 cm3
Plastic spool suitable both for high precision and random winding
The standard colour is black, available also in different colours
Single use

All the stated dimensions, loads and weights are approximative values.
Usual tolerances for the sector and customers remain reserved.
Possibility to customize the wire basket spool adapter.
For the quality and features of the materials, see the specific data sheet. Transport and store in dry environments with temperatures from +5° to +45°. Before the use, let the goods acclimate at a temperature of 15°.
Handle avoiding collisions and/or falls.
Pallets must not be stored in direct sunlight, because the heat increase may cause permanent warp of the plastic.
Spools manufactured with plastic blend of PC/ABS are not suitable for winding Stainless Steel wires.
To avoid the risk of Environmental Stress Cracking, it is strongly recommended to test the compatibility of the chemicals used in the production process with the material of the spool.

Data sheet

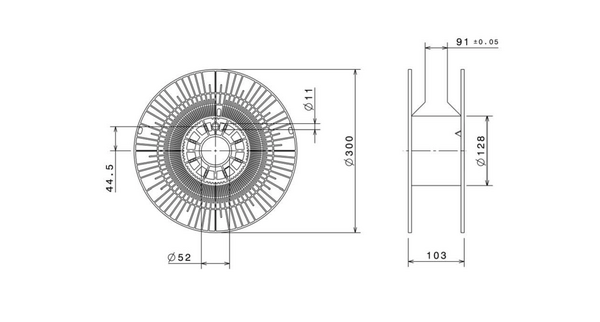

300-25-910-plastic-spool-d300-25-kg-91-0-mm-drawing

Package

Full Mega Truck
1360X248X300cm
pz/pallet = 240
n. pallet = 56
Tot. pcs = 13440
Pallet AxBxC = 96x121x138H
Full Standard Truck
1360x248x270cm
pz/pallet = 440
n. pallet = 28
Tot. pcs = 12320
Pallet AxBxC = 96x121x243H
Full Container 20' Box
586x231x236cm
pz/pallet = 380
n. pallet = 10
Tot. pcs = 3800
Pallet AxBxC = 96x121x212H
Full Container 40' Box
1200x230x236cm
pz/pallet = 380
n. pallet = 22
Tot. pcs = 8360
Pallet AxBxC = 96x121x212H
Full Container 40' HC
1200x234x268cm
pz/pallet = 420
n. pallet = 22
Tot. pcs = 9680
Pallet AxBxC = 96x121x243H
spazzolplastica-package-image-300-25-910

Packaging notes

In order to guarantee the stability of the products during the transport, for long distances, we recommend to load a full truck/container.
In case of partial loads, secure the pallets carefully.
Upon request, there is the possibility to plan a full load of mixed products.
Upon request, there is the possibility to customize the pallet.
We suggest to manage our pallets in warehouse according to the FIFO method.

Download product sheet
